Urbanfil® Pavermate® (deep pan access covers)

australian madeA range of deep pan steel cover & frame systems for use with brick pavers.

Tilemate is available in single part, 2 part, 3 part, trench run and multipart configurations up to class

Pavermate® is available in single part, 2 part, 3 part, trench run and multipart configurations up to class B80kN (AS 3996).

The range comprises square and rectangular infill access covers manufactured from hot dip galvanised steel. The steel base is fitted with reinforcing bars to provide flexural strength with concrete poured in situ.

Brass edging is an option for aesthetic applications.

Important note: To accommodate pavers, covers have an overall pan depth of 135mm (and 70mm at the frame edge). However as concrete is integral to the strength of the cover,  pavers need to be bedded with concrete to a minimum depth of 45mm.

Urbanfil® Pavermate® - Single part

Urbanfil Pavermate Single Part Access Cover

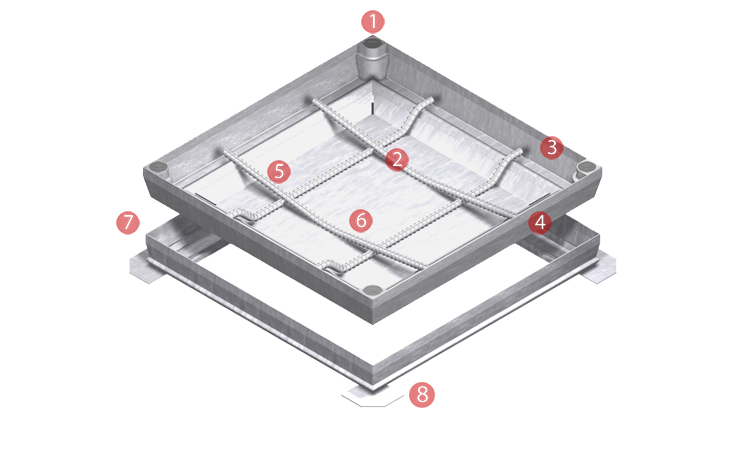

Features & benefits

14 High tensile steel M16 recessed socketed locking bolts per cover with plastic cap to
protect from dirt ingress.
212mm reinforcing bars on class B covers
3Optional brass decorative edge
4Angled 2mm thick galvanised steel angle frame allows cover removal in all 4 directions
5Deep pan allows for sufficient bedding concrete beneath pavers.
6Solid base cover for easy installation of infill materials
7 Polyethylene seal provides a water and gas seal without the need for grease.
8Concrete anchors on all frames provide excellent fixing into surrounding concrete

Urbanfil® Pavermate® - Two part

Urbanfil Pavermate 2 Part Access Cover

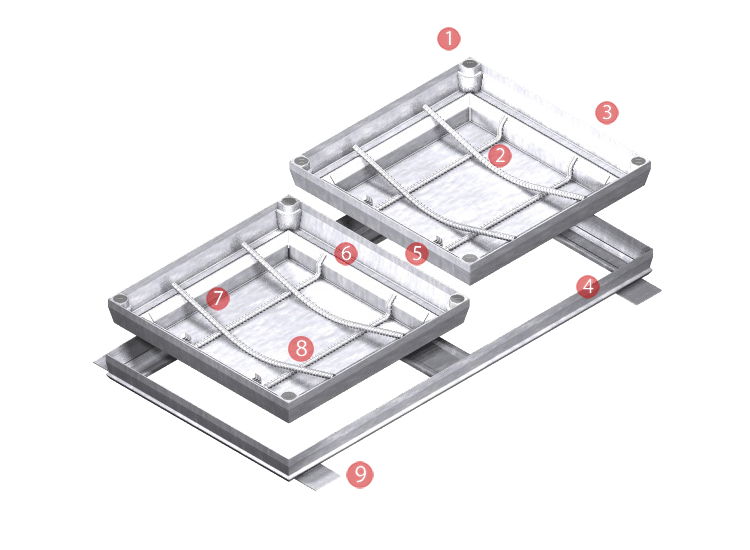

Features & benefits

14 High tensile steel M16 recessed socketed locking bolts per cover with plastic cap to protect from dirt ingress.
212mm reinforcing bars on class B covers
3Optional brass decorative edge around frame and cover edges
42mm thick galvanised steel angle frame to fit around both covers with removable cross bar to support covers and provide a seal and locking bar for centre corners, also acts as a guide for correct positioning. Covers are removable in all 4 directions
5Covers do not need to be the same length, if widths are the same, any standard covers can be combined to create 2 –part units
6Polyethylene seal provides a water and gas seal without the need for grease.
7Deep pan allows for sufficient bedding concrete beneath pavers depth allows for sufficient bedding concrete.
8Solid base cover for easy installation of infill materials
9 Concrete anchors on all frames provide excellent fixing into surrounding concrete

Urbanfil® Pavermate® - Product details

Single part

     Class B - AS 3996 - 80kN
Type Part No. C/O1
WxL
(mm)
O/A1
WxL
(mm)
O/A1
Depth
(mm)
Cover
Wgt
(kg)
O/A1
Wgt
(kg)
Decorative Edging2 Locking Option3 JPG
PM24C 80151 200x450 330x580 135 8.0 13.0 BE BB JPG
PM33C 81297 300x300 430x430 135 6.7 12.5 BE BB JPG
PM36C 81340 300x600 430x730 135 11.00 16.00 BE BB JPG
PM365C 80451 350x650 480x780 135 11.0 17.0 BE BB JPG
PM44C 81305 450x450 580x580 135 11.4 17.0 BE BB JPG
PM46C 81312 450x600 580x730 135 12.5 18.9 BE BB JPG
PM66C 81948 600x600 730x730 135 14.9 21.9 BE BB JPG
PM67C 81353 600x750 730x880 135 17.8 25.4 BE BB JPG
PM69C 81364 600x900 730x1030 135 20.0 28.3 BE BB JPG
PM77C 81372 750x750 880x880 135 20.7 28.9 BE BB JPG
PM94C 81338 900x450 1030x580 135 17.9 25.5 BE BB JPG
PM99C 81992 900x900 1030x1030 135 26.5 36.0 BE BB JPG


1. C/O = Clear opening O/A = Overall
2. Decorative Brass (BE) can be added - just specify BE.
3. Optional security locking bolts are available for security applications - specify Barri bolts (BB) after part no.

Accessories
  Part No Weight (kg) JPG
Universal short lifting key 84306 0.40 JPG
Urbanfil®/Pavermate®: allen locking key 84313 0.25 JPG

Two part

     Class B - AS 3996 - 80kN
Type Part No. C/O1
WxL
(mm)
O/A1
WxL
(mm)
O/A1
Depth
(mm)
Cover
Wgt
(kg)
O/A1
Wgt
(kg)
Decorative Edging2 Locking Option3 JPG
PM2410B 82358 450x1020 580x1150 135 11.4/11.4 33.9 BE BB JPG
PM2411B 82366 450x1170 580x1300 135 11.4/12.5 35.9 BE BB JPG
PM2413B 82373 450x1170 580x1450 135 12.5/12.5 37.9 BE BB JPG
PM2610B 82384 600x1020 730x1150 135 12.5/12.5 39.7 BE BB JPG
PM2611B 82398 600x1170 730x1300 135 12.4/14.9 39.6 BE BB JPG
PM2613B 82405 600x1320 730x1450 135 14.9/14.9 39.2 BE BB JPG
PM2614B 82417 600x1470 730x1600 135 14.9/17.8 44.7 BE BB JPG
PM2616B 82422 600x1620 730x1750 135 17.8/17.8 50.4 BE BB JPG
PM2617B 82436 600x1770 730x1900 135 17.8/20.0 57.5 BE BB JPG
PM2619B 82443 600x1920 730x2050 135 20.0/20.0 56.9 BE BB JPG
PM2713B 82450 750x1320 880x1450 135 17.8/17.8 51.1 BE BB JPG
PM2714B 82464 750x1470 880x1600 135 17.8/20.7 54.7 BE BB JPG
PM2716B 82471 750x1620 880x1750 135 20.7/20.7 58.2 BE BB JPG
PM2913B 82488 900x1320 1030x1450 135 17.9/17.9 55.3 BE BB JPG


1. C/O = Clear opening O/A = Overall
2. Decorative Brass (BE) can be added - just specify BE.
3. Optional security locking bolts are available for security applications - specify Barri bolts (BB) after part no.

Accessories
  Part No Weight (kg) JPG
Universal short lifting key 84306 0.40 JPG
Urbanfil®/Pavermate®: allen locking key 84313 0.25 JPG
